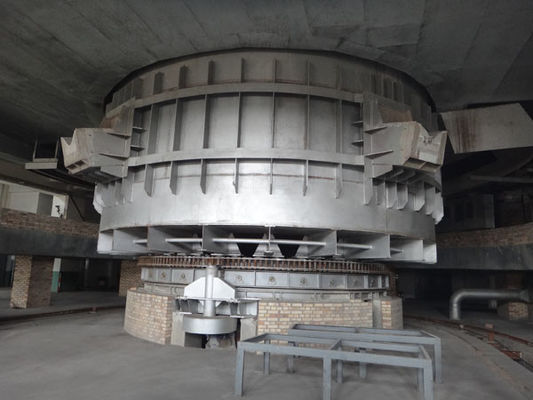

7000KVA Heavy Engineering Projects Internal Combustion Calcium Carbide Furnace

Basic Information
Place of Origin: China
Brand Name: CMT
Certification: ISO
Model Number: 7000KVA
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: container or bulk according to real condition
Delivery Time: about 2~3months
Payment Terms: T/T
Supply Ability: 1set/two months
Detail Information
Capacity: Designed According To The Customers Real Need Power: 7000KVA
Primary Side Voltage: 35KV Secondary Side Voltage: 98~110~116(V)
Common Voltage: 110(V) Furnace Hearth Depth: 1520mm
High Light:

paper faced gypsum board production line


calcium carbide furnace

Product Description

Technical parameters

Transformer capacity: 7000KVA

Primary side voltage: 35KV

Secondary side voltage: 98~110~116(V)

Secondary side voltage level: 7级/level 7, differential:3V

Common voltage:110(V)

Common current: 36741(A)

Electrode diameter: Φ600mm

Electrode core circle diameter: Φ1780mm±50mm

 Furnace hearth diameter: Φ4200(mm)

Furnace shell diameter: Φ5160(mm)

Furnace hearth depth:1520mm

Furnace shell height: 3600mm

Low hood height: 1800mm

Electrode stroke: 1500mm,

 Electrode lifting speed: 0.5m/min






Furnace type


Semi-closed low hood


KVA 7000

Flue gas temperature


Amount of industrial and mining gas

m3/h 120000

Dust concentration

g/Nm3 6-8
