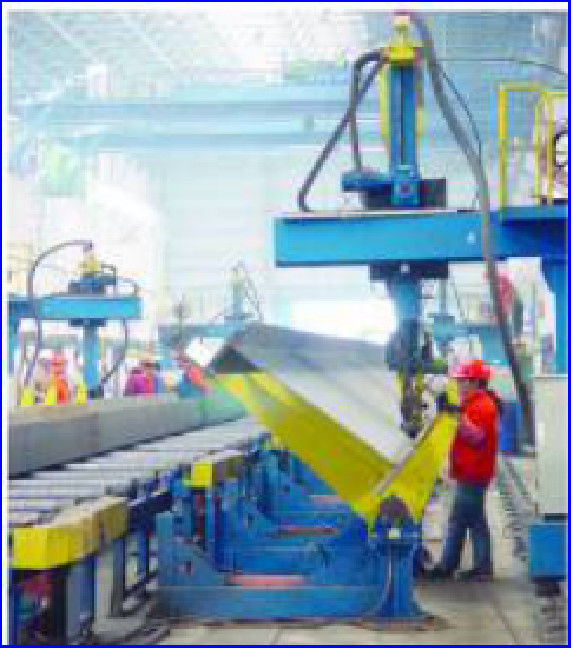

Heavy Engineering Projects Heavy Duty H Beam Production Line For Turkey Project

Basic Information
Place of Origin: China
Brand Name: CMT
Certification: ISO
Model Number: Hbeam
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: container or bulk according to real condition
Delivery Time: about 2~3months
Payment Terms: T/T
Supply Ability: 1set/two months
Detail Information
Capacity: Accroding To Customer Real Need Conveying Machine: Lifting 15ton/group
90°overturning Machine: 1group=3sets 180°overturning Machine: 1group=2sets
Type: Heavy Engineering Projects Usage: Turkey Project
High Light:

calcium carbide furnace

,

h beam production line


Product Description

Name Description
Strip flame cutting machine 4m gantry, 18m rail length, one transverse cutting torch, nine strip cutting torches, single side driving
Assembly machine Automatic centering and automatic spot-welding, equipped with two sets of ZKR-350 gas shielded welding machine; Conveying roller 2.6m*6pcs;
Cantilever welding machine Single arc single wire, with Zhenzhong welding machine MZ-1250*1set (option 1)
Single arc single wire, with American Lincoln welding machine DC-1000*1set (option 2)
conveying machine Lifting 15ton/group
60°overturning machine 4groups, total 12 sets of rack and 24 sets of roker arm
90°overturning machine 1group=3sets
180°overturning machine 1group=2sets
Hydraulic straightening machine

Flange width: 200-800mm, Flange thickness: 6-60mm(Q235), 6-40mm (Q345)

Conveying roller 3.5m*4pcs. with small pinch rollers

Length can be calculated according to actual plant
Shot blasting machine Work-piece width*height: 1000*2000mm; Including shot-blasting room, conveying roller, hoister, separator, dedusting system, electrical control system and shot cleaning system. Impeller head 8*11KW, shot blasting room uses Mn13 guard plate.
CNC drilling machine Work-piece width*length: 2000*1400mm, Max plate thickness: 80mm, Max. drilling diameter: Φ60mm; Equipped with Spanish FAGOR CNC system.
