Product Description

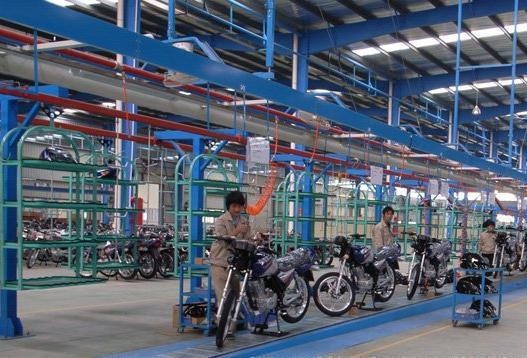

The motorcycle production line is consist of three main parts: assembly line, testing line and package line .

1. Process for assembly
1.1 For motorcycle assembly

No.	Item
01	Frame Marking
02	Press axle
03	Connect cable, fix cushion and lacing wire
04	Install rear wheel fork combination ,rear brake connection
05	Install filter
06	Ignition coil
07	Install front of rear fender , voltage regulator line, starting relay, flasher
08	Front fork suspension and front sign bracket combination ,Head lock combination ,connection board combination on instrument , flexible axle
09	Install front fender, front fender lining, front license plate bracket
10	Install rear of rear fender ,rear license plate bracket, rear taillight, rear label, rear reflector
11	Install rear of rear fender, rear turn light bracket ,rear turn light
12	Install main bracket ,rear brake arm combination
13	Install front wheel , rear wheel split pin
14	Install light ,fairing, windshield
15	Install Hand assembly
16	Install left & right front fork, front turn light, side reflector
17	Install carburetor, wiring

1.2For engine assembly

No	Item
01	Engine Assembly
02	Engine assembly frame ,rear break pull rod
03	Tighten carburetor
04	Install front wheel combination
05	Install rear wheel rear fork combination
06	Adjust chain, tighten rear wheel
07	Adjust rear brake
08	Tighten rear shock, instrument combination and front fork
09	Tighten left & right of rear paddle combination
10	Tighten silencer
11	Wiring
12	Install chain case
12	Install handlebar
13	Install starting arm
14	Install throttle cable
15	Install front light combination
16	Engine right & left cover, gear shift pedal
17	Tighten top of rear shock absorption
18	Tighten fuel tank
19	Tighten accumulator box
20	Frame rubber gasket, left & right body cover
21	Tighten rear central cover
22	Tighten left & right side cover
23	Tighten rear storage rack
24	Install cushion and fuel tank lock

2. Production line list

No.		Name		Quantity		Note
1	(1)	Assembly line	Line	1 set	1 pcs	45m
	(2)		Drive and control		1 pcs
	(3)		Jig		36 pcs
	(4)		Turn-line hoist(250KGS)		1 pcs
	(5)		Pre assembly work table		1 pcs
2		Testing line		1 set
3		Package line		1 set		15m
4	(1)	Public facility	Air compressor	1 set	1 pcs
	(2)		Air tank		1 pcs
	(3)		Filter		1 pcs
	(4)		Marking machine		1 pcs
	(5)		Tyre machine		1 pcs
5	(1)	Pneumatic tools	Gas driving spanner	1 set		WT985
	(2)		Pneumatic screwdrive			WT203
	(3)		Spring balancer
	(4)		Air charging gun
	(5)		Sprial air pipe			8×12×7.5M
	(6)		Pneumatic screwdrive(Gun type)			WT208
	(7)		Gas driving spanner			WT906
	(8)		Torque spanner
	(9)		Digital multimeter
	(10)		Vernier caliper
	(11)		Electric hand drill			13RE
	(12)		T-Sleeve			8-19
	(13)		Tool bit			QT-L
	(14)		Sleeve			1/2
	(15)		Internal hexagonal wrench

For more information, please contact us at any time.

Electric Motorcycle / Electric Bike Assembly Line Custom Made Size 0

Tag:

Place of Origin:	China
Brand Name:	CMT
Certification:	ISO
Model Number:	customization

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	standard export package
Delivery Time:	30 working days
Payment Terms:	T/T, L/C
Supply Ability:	5000 sets/year
