Glass Fiber Yarn / Fiberglass Roving/ Chopped Strand Roving Production Line

Basic Information
Place of Origin: China
Brand Name: CMT
Certification: ISO
Model Number: customization
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard export package
Delivery Time: 120 working days
Payment Terms: T/T
Supply Ability: 10 sets/year
Detail Information
Material: Glass Ball Turnkey Project: Yes
Design Capacity: Min. 200kg/day Furnace: Crucible Furnace, Tank Furnace
Type: Light Industry Projects Name: Fiberglass Yarn Production Line
High Light:

cement bag making machine


cnc drilling machine

Product Description

Supply and service scope:
Feasibility Studies
Plant Design
Material and Equipment Supply
Commissioning and Start-Up
Construction, Installation and Supervision
Contract Management and Implementation
Plant Renovation
Combustion System Design and Supply
Automatic Batch Plant Design and Supply
Global Consulting Services for Plant Operation

CMT has been supplying different kinds scale of Fiber glass plant to the customers at home and aboard on the basis of Turn-key.
Direct-melt furnace fiber forming technology has the advantages of stable fiber quality, high yield and low consumption. CMT have the whole set of fiberglass furnace production technology and equipment with capacity of 50000 tons/year.

The Diameter range of Fiber glass:
Crude fiber: 30 μm
Primary fiber: 20~30 μm
Intermediate fiber: 10~20 μm
Advanced fiber: 3~10 μm
Ultrafine fiber: ≤ 4 μm
Design scheme of each critical part in this production line
1. Batch material system: mean square error is 0.4; Static weighing accuracy: 1/2000; Dynamic weighing accuracy: 1/2000

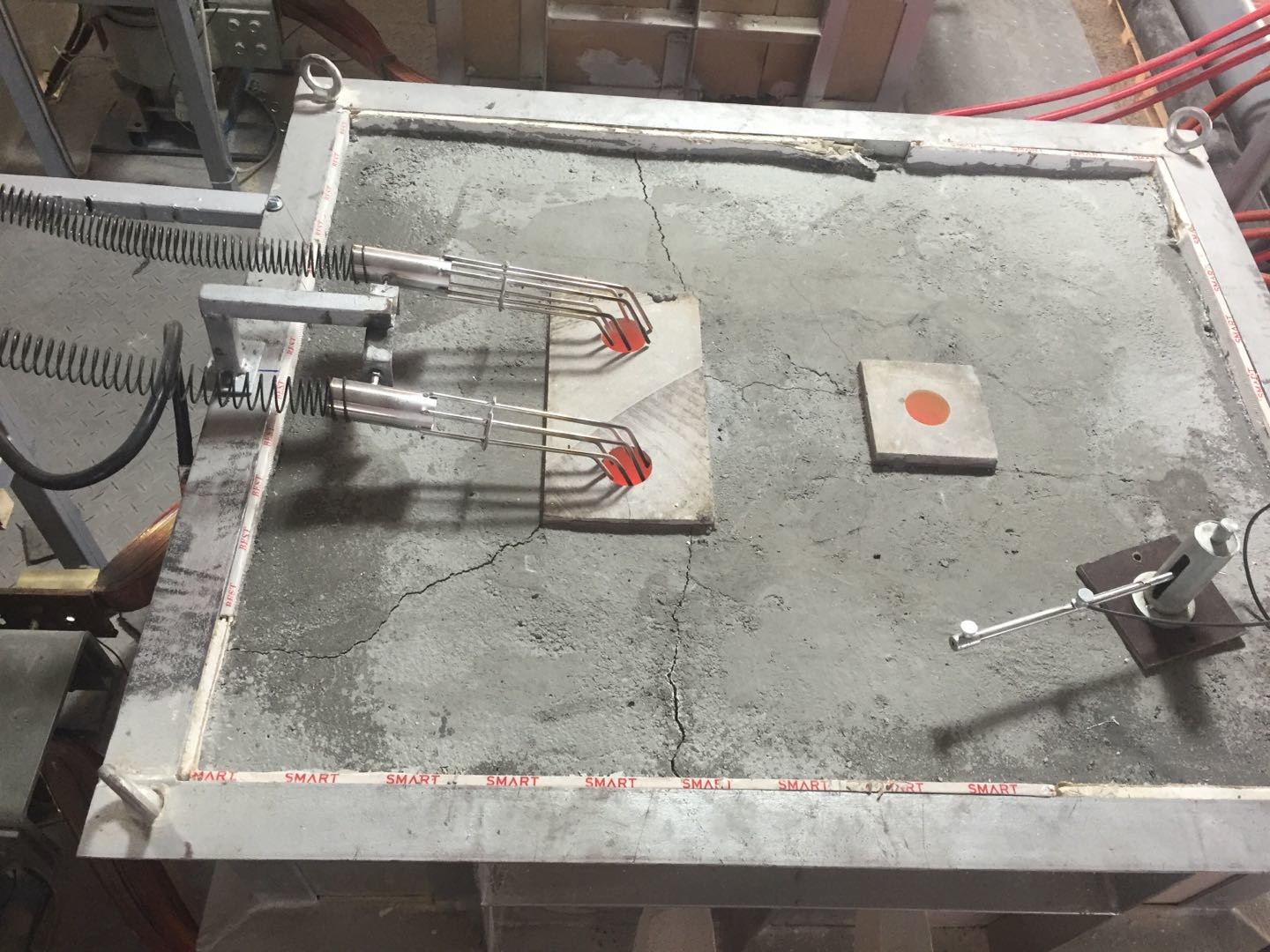

2. Furnace and Forehearth system:
Deep melter over 1.0 meterand preferably at about 1.2 meter;Proper insulation of sidewalls and bottom to manage top to bottom glass circulation currents to improve glass homogenization without increasing sidewall wear;Oxygen-fuel combustion with crown mounted burners preferred;Large amount of electric boost with many rows covering the bottom;Special bottom construction to protect from high boosting rates Submerged or near bottom throat exit;Submerged or near bottom throat exit
Glass Fiber Yarn / Fiberglass Roving/ Chopped Strand Roving Production Line 0

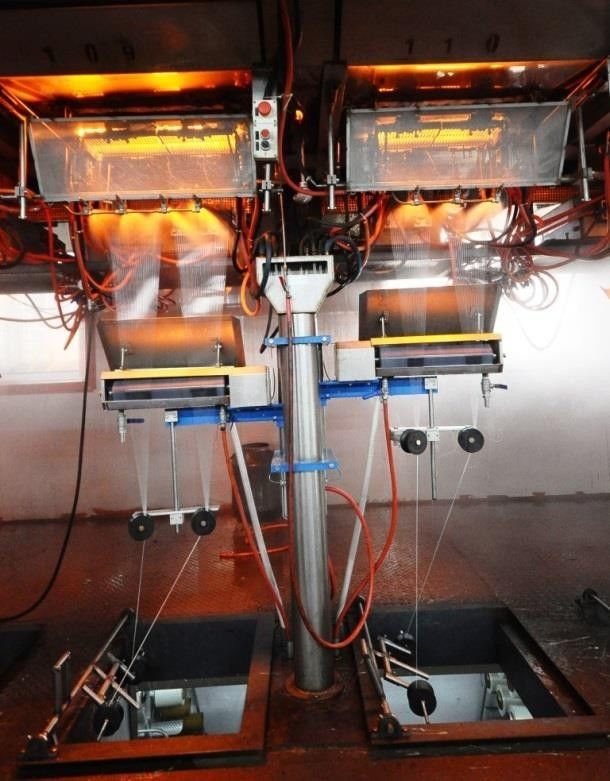

3. Fiber forming part
4. Sizing preparation
5. Dry and product
6. Automatic control
7. Utility system
Equipment list

Batch Weighing, Mixing & Distribution

Furnace & Forehearth Steel structures

Wind fan cooling air system

Piping & accessories


Combustion System

Electric Boost

Control System

Electrical control system

Furnace pressure control system

Glass level control system

Bushing accessory

Bushing temperature control system

Furnace monitors TV

......For more information, pls feel free to email us
