Design Capacity: | 1000L/Hour | Control: | Siemens PLC |
---|---|---|---|
Turn-key Project: | Yes | Covers An Area Of Workshop Equipment: | 200㎡ |
Highlight: | filling and capping machine,cup cake production line |

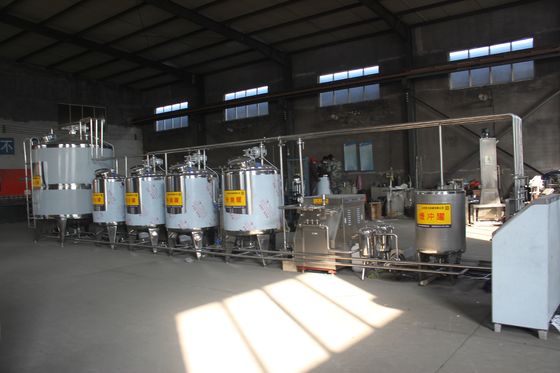

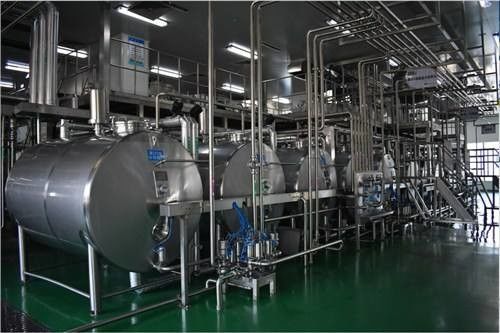

Milk Production Machine Production Line /Whole machine line/Turn-key Project
Descriptions of complete milk production line
This dairy processing milk plant produce several types of market milk products, i. e., whole milk, skimmed milk and standardized milk of various fat contents.
The raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST pasteurizer or UHT processing.
End product package of this dairy processing milk plant can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box, combibloc,paper cartons,etc. For this milk processing line according to different end product and package type, the production technology is differently designed.
For example
raw materials:powder milk
Flow chart
powder mixing→ homogenizer→ vacuum degasser→ pasteurization→ keeping warm→ cooling→ filling→ cold storage
Equipment Name | Technical specifications | Quantity |
Milk pump | Weight:20KG Max.rotation rate:1750min |
4 sets |
CIP pump | Weight:20KG Max.rotation rate:1750min |
2 sets |
Pre-treatment System | Material:304 Stainless Steel Working pressure:≤0.6<MPa Working Temperature:≤50ºC |
1 set |
RO system | Material:304 Stainless Steel | 1 set |
Duplex filter | Fliter material:SUS304 | 1 set |
High Emulsation Tank | Material SUS304 Rotating high shear emulsification head, Inlet&outlet:φ51 |
1 set |
Mixing tank | Material:SUS304 stainless steel CIP cleaning heads Double wall |
2 set |
CIP cleaning in place unit | with 10T CIP pump Stainless steel plate Thickness:2.5mm Weight:520KG |
1 set |
Homogenizer | Maximum pressure:25Mpa Rated pressure:20Mpa Rotating speed:730r/m Weight:1500KG |
1 set |
UHT tubular sterilizer | Temperature:140°C(adjustable) | 1 set |
Temperatory temperature conservation storage tank |
Material:SUS304 stainless steel Thermometer man hole with liquid level gauge double layer |
1 set |
Brick-shaped Carton Filling Machine | Working Air Pressure 0.8-1.0Mpa Total Power 26KW(11KW during normal work) |
1 set |
For more information,please contact with us.
