OSB Particle Board Manufacturing Equipment Multi Opening Press

Basic Information
Place of Origin: China
Brand Name: CMT
Certification: CE, ISO
Model Number: Customization
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 150 Working Days
Payment Terms: T/T, L/C
Supply Ability: 50 Sets Year
Detail Information
Design Capacity: 30000-300000 Cubic Meters / Year Panel Size: 2440 X 1220 MM
Panel Thickness: 6 - 40 MM Design Standard: LY/T1580-2010
Control: Siemens PLC Turn-key Project: Yes
High Light:

OSB Particle Board Manufacturing Equipment


Multi Press OSB Production Line


PLC OSB Manufacturing Equipment

Product Description

OSB Production Line Particle Board Manufacturing Equipment

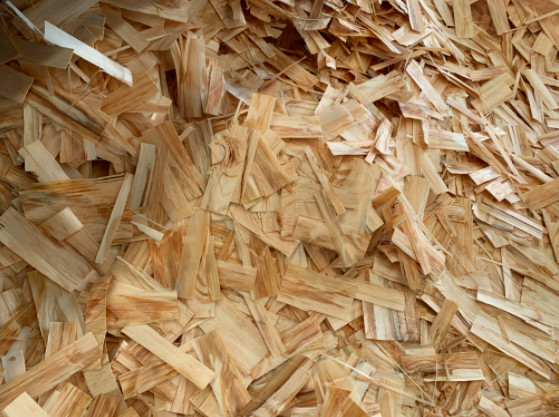

1. Chip preparation section Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to

the chip bin, and then feed to the knifering flaker by which the chips are turned to flakes, then the flake stored in wet flake bin.


2. Drying and sifting section

The flakes are discharged from the wet flake bin which are conveyed to the rotary dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface dry wood shavings bin to be stored.


3. sizing section

After scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified glue to achieve the uniform mixing and the sufficient sizing effect.


4. Paving and thermoforming section

The after sizing shavings are transported to the mechanical grading paving machines

by the belt conveyor.and they are paved to the uniform flat slab. After a series of processes such as pre-press, lengthwise saw, cross saw, accelerate conveyor, storing conveyor and loading conveyor,the rough boards are sent to the installed hoistingcages,then the rough boards are pressed by the hot press machine.


5. Post--processing section

The thermofoming boards are conveyed to the panel turnover machien to become cool, then the boads are transported to the vertical and horizontal edge cutting machine by the cooling conveyor.


6. sanding section

The boards are sanded, checked and stored . PLC control is used in mat-forming section. We can provide 5000-100000 m³ OSB production line as well as a single machine supplement such as chipper, refiner, dryer, forming machine, pre-press, hot press etc.


Raw Material






Glue Type






Hot Press



Multi-opening Press,

Continuous Press

(4 ft, 8 ft, 12 ft)

Design capacity





250000 Cubic Meters


If you are interested, do not hesitate to contact me.
