Detail Information

Design Capacity:	30000-300000 Cubic Meters / Year	Panel Size:	2440 X 1220 MM
Panel Thickness:	6 - 40 MM	Control:	Siemens PLC
Turn-key Project:	Yes	Name:	3 Plywood Veneer Machine Production Line Turnkey Project
Highlight:	Turnkey Project Plywood Veneer Machine , Siemens PLC Plywood Veneer Production Line , Turnkey Project Plywood Veneer Production Line

Product Description

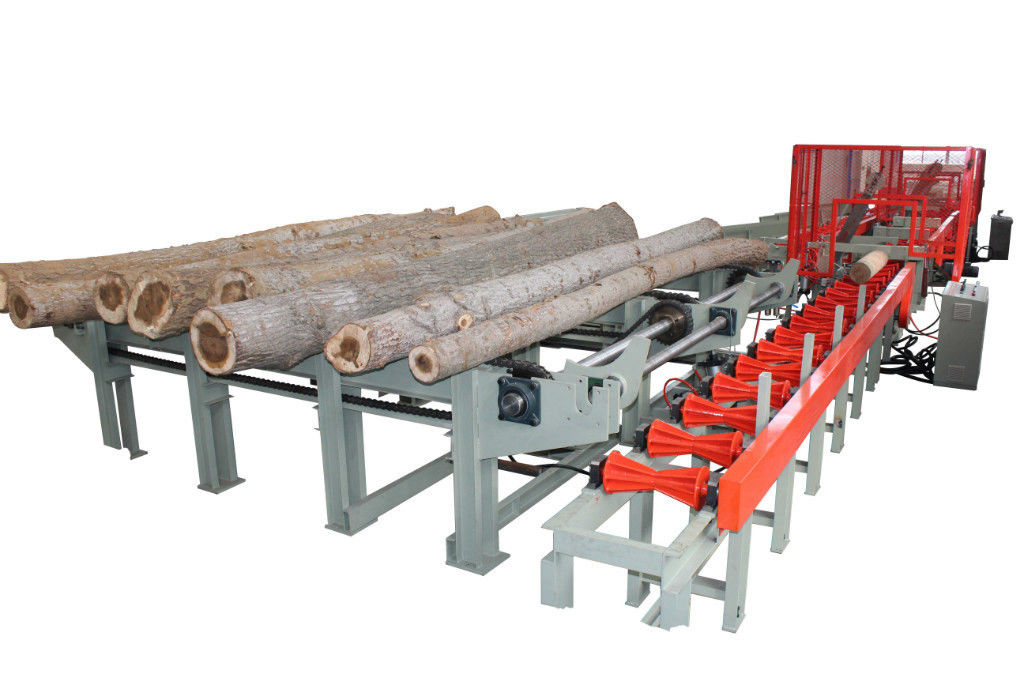

3 Plywood Veneer Machine Production Line Turnkey Project

Plywood
Plywood is a material manufactured from thin layers or "plies" of wood veneer that are glued together with adjacent layers having their wood grain rotated up to 90 degrees to one another. It is an engineered wood from the family of manufactured boards which include medium-density fibreboard (MDF), oriented strand board (OSB) and particle board (chipboard).

All plywoods bind resin and wood fibre sheets (cellulose cells are long, strong and thin) to form a composite material. This alternation of the grain is called crossgraining and has several important benefits: it reduces the tendency of wood to split when nailed at the edges; it reduces expansion and shrinkage, providing improved dimensional stability; and it makes the strength of the panel consistent across all directions. There is usually an odd number of plies, so that the sheet is balanced this reduces warping. Because plywood is bonded with grains running against one another and with an odd number of composite parts, it has high stiffness perpendicular to the grain direction of the surface ply.

Smaller, thinner, and lower quality plywoods may only have their plies (layers) arranged at right angles to each other. Some better-quality plywood products will by design have five plies in steps of 45 degrees (0, 45, 90, 135, and 180 degrees), giving strength in multiple axes.

Production

Plywood production requires a good log, called a peeler, which is generally straighter and larger in diameter than one required for processing into dimensioned lumber by a sawmill. The log is laid horizontally and rotated about its long axis while a long blade is pressed into it, causing a thin layer of wood to peel off (much as a continuous sheet of paper from a roll). An adjustable nosebar, which may be solid or a roller, is pressed against the log during rotation, to create a "gap" for veneer to pass through between the knife and the nosebar. The nosebar partly compresses the wood as it is peeled; it controls vibration of the peeling knife; and assists in keeping the veneer being peeled to an accurate thickness. In this way the log is peeled into sheets of veneer, which are then cut to the desired oversize dimensions, to allow it to shrink (depending on wood species) when dried. The sheets are then patched, graded, glued together and then baked in a press at a temperature of at least 140 °C (284 °F), and at a pressure of up to 1.9 MPa (280 psi) (but more commonly 200 psi) to form the plywood panel. The panel can then be patched, have minor surface defects such as splits or small knot holes filled, re-sized, sanded or otherwise refinished, depending on the market for which it is intended.

Plywood for indoor use generally uses the less expensive urea-formaldehyde glue, which has limited water resistance, while outdoor and marine-grade plywood are designed to withstand moisture, and use a water-resistant phenol-formaldehyde glue to prevent delamination and to retain
strength in high humidity.

The adhesives used in plywood have become a point of concern. Both urea formaldehyde and phenol formaldehyde are carcinogenic in very high concentrations. As a result, many manufacturers are turning to low formaldehyde-emitting glue systems, denoted by an "E" rating. Plywood produced
to "E0" has effectively zero formaldehyde emissions.

In addition to the glues being brought to the forefront, the wood resources themselves are becoming the focus of manufacturers, due in part to
energy conservation, as well as concern for natural resources. There are several certifications available to manufacturers who participate in these
programs. Programme for the Endorsement of Forest Certification (PEFC) Forest Stewardship Council (FSC), Leadership in Energy and
Environmental Design (LEED), Sustainable Forestry Initiative (SFI), and Greenguard are all certification programs that ensure that production
and construction practices are sustainable. Many of these programs offer tax benefits to both the manufacturer and the end user.

If you are interested, do not hesitate to contact me.

REGARDS!

Turnkey Project 3 Plywood Veneer Production Line PLC Control 0

Tag:

Place of Origin:	China
Brand Name:	CMT
Certification:	CE, ISO
Model Number:	Customization

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	150 Working Days
Payment Terms:	T/T, L/C
Supply Ability:	50 Sets Year

Turnkey Project 3 Plywood Veneer Production Line PLC Control
