100000cbm/Year OSB Single Pass Rotary Drum Dryer Turnkey Project

Basic Information
Place of Origin: China
Brand Name: CMT
Certification: CE, ISO
Model Number: Customization
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 100 Working Days
Payment Terms: T/T, L/C
Supply Ability: 50 Sets Year
Detail Information
Design Capacity: 10 - 80 Ton/Hour Design Standard: GB/T 18262-2000
Control: Siemens PLC Turn-key Project: Yes
Condition: Brand New Drying Type: Hot Air
Highlight:

industrial rotary dryer

,

kiln drying equipment

,

Single Pass Industrial Kiln And Dryer


Product Description

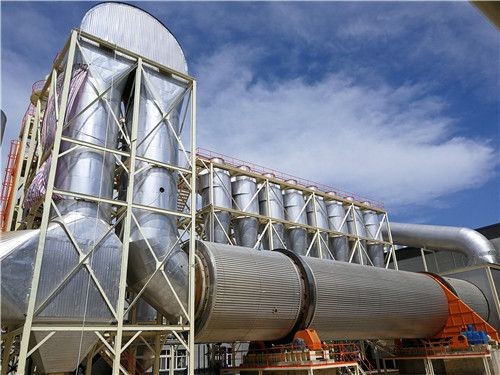

100000cbm/year OSB Single Pass Rotary Drum Dryer Turnkey Project



Application

Wood particles, e.g., sawdust, mini chips, recycling material for PB and pellet production

Strands and wafers for OSB production

Disintegrated seasonal annual crops and other biomass for a wide range of applications



Description

Wet material is fed via a rotary valve and a specially designed infeed chute into rotating drum. There, the heat is transferred mainly through convection from the drying gases to the material for water evaporation. At the end of drum, the material is pneumatically transported to cyclones where the material is separated from the drying gases. One portion of the drying gases is recirculated to the mixing chamber of energy recovery and reduction of dryer exhaust volume.



Consumer benefits

High capacity

Internals designed according to material characteristics for high thermal efficiency and low moisture fluctuation

Optimized drum using FEM

High standard of ety and reliability

Low risk of fire and explosion

Design acc. to ATEX directive 2014/34/EU

Optimized cyclone design

3D modeling



Technical features

Fully integrated control of dryer and energy plant

Fully welded drum shell with alternating sections of cruciform internals and lifting blades

Gear box with frequency-controlled main motor and backup motor for emergency case

Minimal air leakage due to proven seal technology

Dryer exhaust gas recovery

Fully integrated dryer deluge system





No.



Model

Design Capacity

(Ton/Hour)

Drum Diameter

(Meter)

Drum Length

(Meter)

1



SPD3524 14 3.5 24

2



SPD4026 20 4 26

3



SPD4526 25 4.5 26

4



SPD5026 30 5 26

5



SPD5628 40 5.6 28

6



SPD6030 50 6 30



If you are interested, do not hesitate to contact me.
REGARDS!
