|Design Capacity:||30000-300000 Cubic Meters / Year||Panel Size:||2440 X 1220 MM|
|Panel Thickness:||6 - 40 MM||Design Standard:||GB/T 4897-2015|
|Control:||Siemens PLC||Name:||70MM Bearer Hollow Core Particle Board Pallet Production Line|

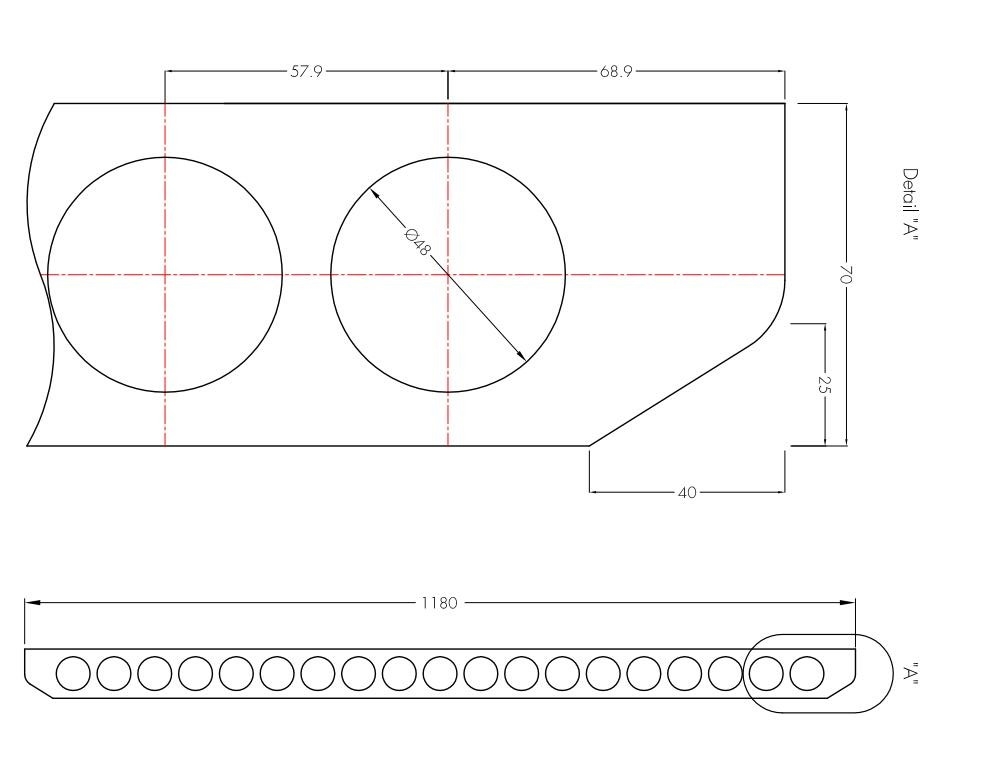

70MM Bearer Hollow Core Particle Board Pallet Production Line
1. Raw material

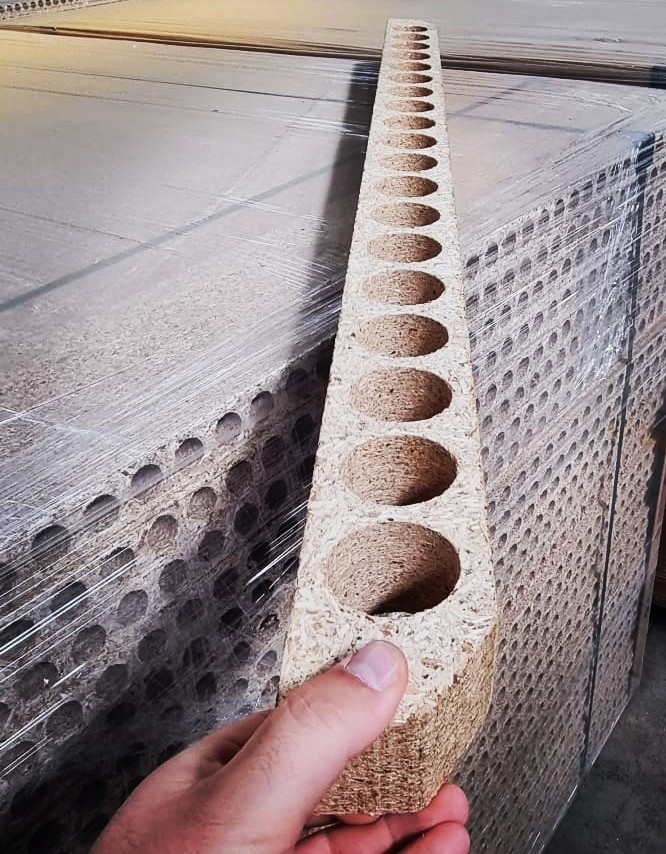

Hollow particle board (also known as bridge hole mechanics board), as an innovation in the production process of door core board, has become a highlight of the products of powerful interior door manufacturers. The bridge tunnel mechanics board uses the principle of the arch bridge tunnel, through high-tech processing, the solid wood chips are made into a unique tubular structure, which can evenly disperse the external force without deformation, because the weight is less than half of the solid wood board of the same size, and the light texture It can also avoid the deformation of hinges and door covers caused by excessive load, and extend the service life. At the same time, the bridge tunnel mechanics board also effectively prevents the diffusion of temperature like a thermos, and maintains a pleasant temperature in winter and summer.
2. Process flow

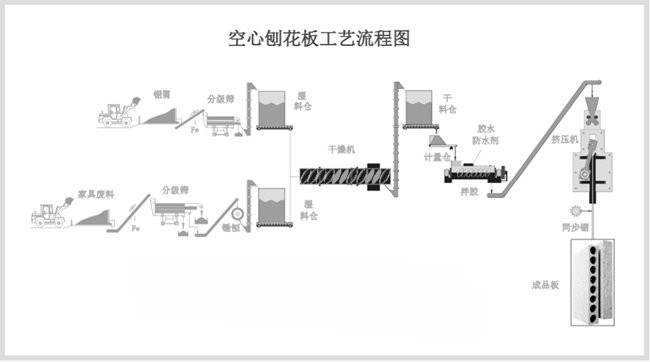

Production process flow: log → chipping → conveying → wood chip storage → shavings → drying → grinding → shavings screening → shavings storage → sizing and waxing → uniform feeding → continuous punching → cross-cut sawing → finished product inspection and storage.
Wood Chips Making Section
Long bench wood planner
Belt conveyer for feeding
First layer chip making machine
Belt conveyer for discharging
Silo for surface layer
Silo for inner layer
Drying & Screening Section
If you are interested, do not hesitate to contact me.
