Detail Information

Design Capacity:	32 Anode/Hour	Design Standard:	CMT
Control:	Siemens PLC	Turn-key Project:	Yes
Name:	Electrolytic Aluminium Anode Rodding Assembly Equipment Production Line
Highlight:	Aluminium Anode Rodding Equipment , 32 Anode/Hour Anode Rodding Equipment , Aluminium Anode Rodding Production Line

Product Description

Electrolytic Aluminium Anode Rodding Assembly Equipment Production Line

Supply and service scope:
Feasibility Studies
Plant Design
Material and Equipment Supply
Commissioning and Start-Up
Construction, Installation and Supervision
Contract Management and Implementation
Plant Renovation
Global Consulting Services for Plant Operation

Phosphorus iron ring stripping press is one of the necessary equipment for the production of electrolytic aluminum anode assembly workshop. It is used for pressing and removing the phosphorus iron ring of the aluminum guide rod. The guide rod stepping machine is used to automatically control the positioning, and the single-pole method of pressing and removing one by one breaks the phosphorus iron ring of the guide rod and separates it from the steel claw body of the guide rod. recycle for reuse. It is mainly composed of stepping mechanism, press-off frame, connecting rod mechanism, half-ring embracing mechanism, lifting and pressing mechanism, material guiding device, hydraulic system, electrical system, etc. Using solid self-lubricating bearings, it is suitable for high dust and high load environments, eliminating the tedious work of lubrication.

Technical parameter:
1. Pressure release force: 2240KN
2. Anode group form: single anode
3. Dimensions: 2314X1134X2138(mm)
4. Power: 50KW
5. Working pressure of hydraulic system: P=22Mpa;
6. Equipment weight: press 6556Kg off-line, stepper mechanism 3238Kg
7. Productivity: 35 groups/hour
8. Dimensions: 2312×1134×2138
9. Equipment weight: 8133Kg

Features:
High reliability, full hydraulic drive, PLC automatic control

Process flow:
The guide rod enters the offline area of the phosphorus iron ring, and the catenary sends out the offline signal and drives away from the guide rod; the guide rod stepping machine positions the aluminum guide rod (the frequency converter is used to control the different speeds of the working and stepping, Control and drive the aluminum guide rod forward and backward). After the aluminum guide rod stepping machine pushes the guide rod into the press-off station, it gives a signal to make the linkage mechanism on the press-off machine move, drives the double-encircling mechanism to close, the lower lifting and pressing mechanism goes up, and the phosphorus iron ring immediately follows. After being pressed, broken and falling off, the slag guide device falls to the conveyor and returns to the cleaning area. After cleaning, the ferrophosphorus is sent back to the ferrophosphorus casting area for reuse. The driving link mechanism is reset immediately, the double embracing mechanism is opened, and the stepper pushes the aluminum guide rod to move to the next station, and starts to press off the second phosphorus iron ring. When the final press release of a set of phosphorus iron rings is completed, the stepper pushes the aluminum guide rod into the catenary line, and returns quickly to accept the next set of aluminum guide rods. All actions are automatically completed by the electronic control system PLC, with the assistance of manual intervention.

CMT has been supplying different kinds scale of Electrolytic Aluminium Anode Rodding Project at home and aboard on the basis of Turn-key.

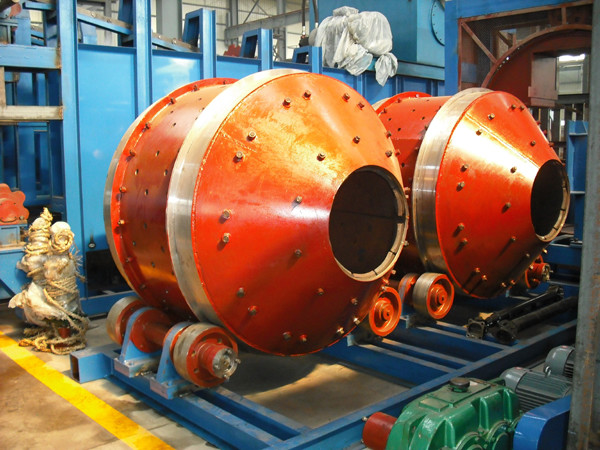

Electrolytic Aluminium Anode Rodding Assembly Equipment Production Line 1

FOR MORE INFORMATION, DO NOT HESITATE TO CONTACT WITH US.

Tag:

Place of Origin:	China
Brand Name:	CMT
Certification:	CE, ISO
Model Number:	Customization

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	150 Working Days
Payment Terms:	T/T, L/C
Supply Ability:	50 Sets Year
