Automatic Building Materials Projects Paper Faced Gypsum Board Production Line

Basic Information
Place of Origin: China
Brand Name: CMT
Certification: ISO
Model Number: Customization
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 150 Working Days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Year
Detail Information
Automatic Production Line: Assembly Production Scope: Product Line
Rhythm: Flow Production Line Transmission Type: Flexible
Gypsum Board Length(mm): 2400\2440\2500\2700\3000 Gypsum Board Width(mm): 1200\1220
Gypsum Board Thickness(mm): 8\9\9.5\12\12.5\12.7\15\18 Fuel: Natural Gas
High Light:

float glass production line


hot dip galvanizing line

Product Description

Paper Faced Gypsum Board Production Line

We can design the production line according to your requirements. The following data is just for your reference.
1. Scheme of product
1.1 Capacity
280 m2/h, 2,000,000 m2/y (based on 9.5mm thick and 7200 working hours per year)

2. Brief Introduction of Process
2.1 Board-making Workshop
2.1.1 Dosing Section
2.1.2 Forming Section
2.1.3 Cutting and Drying Section
2.1.4 Edge Trimming and Stacking Section

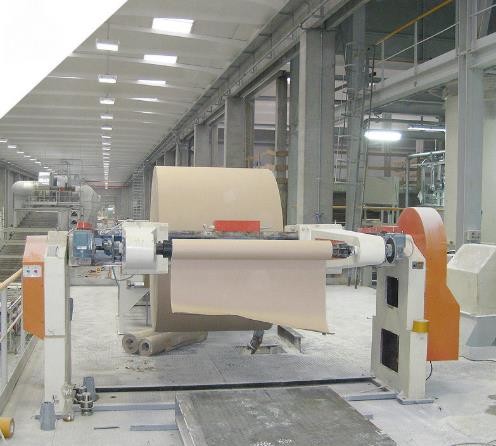

3.Pictures of factory


Automatic Building Materials Projects Paper Faced Gypsum Board Production Line 0


Gypsum board specification
Length(mm) 2400,2440,2500,2700,3000
Width(mm) 1200,1220
Thickness(mm) 8,9,9.5,12,12.5,12.7,15,18


Requirement of the raw material
Raw materials Item Specification

Calcined gypsum powder
Fineness 0.2mm,Remnant<10%
  Initial set time 3.5-5.5 minutes
  Final set time 7.5-10.5 minutes
  Crystal water 4.5%-5%
  Half-water gypsum powder >65%
  Bending strength (2 hours) 1.8 Mpa
Paper Weight 190-220g/ Square meters
  Thickness 0.36-0.4mm
  Air permeability 0.85-1.6μm/pas
  Water absorption( Cobb ) 15-30g/square meters
  Tensile strength Portrait 12.5 KN/m, transverse 3.5 KN/m
  Transverse expansion and contraction <2%
  Moisture 10%±2
Denaturized starch Content of the starch >70%
  Moisture 11%-13%
  PH 6.5-7.5
  Protein <0.3%
  Solubility in 20-40 water(c) 73%-78%
Foaming agent Condensate >30%
  Ligarine <3%
  Inorganic salts >2.5%
  PH 7-9


For more information,pls feel free to contact me.
