150,000tons/Year Steel Rod Hot-Rolling Mill Making Machine/ Production Line

Basic Information
Place of Origin: China
Brand Name: CMT
Certification: ISO
Model Number: 120 Square Billet to Roll Φ 10 ∽Φ 36 steel rod
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 90 Working Days
Payment Terms: T/T
Supply Ability: 3 sets Year
Detail Information
Design Capacity: 150,000tons/Year Control: Siemens PLC
Turn-key Project: Yes

Product Description

Steel Rod Hot-rolling Mill Proposal

120 Square Billet to Roll Φ 10 ∽Φ 36 steel rod

150,000tons/year
1.Steel Rolling Process
Hang qualified raw material to the feeding roller bed by crane, convey to the heating furnace tail, push to the heating furnace to heat by steel pusher. When material is heated to 1100-1200℃, it will be pushed out by discharge machine to rolling mill to be consecutively rolled 9 to 19 times. In order to prevent the rolling accident caused by irregular parts and low temperature parts, set rotary cutting flying shears between rough rolling(φ450×3+Φ450×2×2)and middle rolling(φ320×2×3), middle rolling and finishing I rolling(φ280×2×2). In order to minimize the processing time of rolling accident, set tensile shears and cutting shears before the hot material entering the mill entrance and finishing II rolling(φ280×2×3). Of course, the two rotary cutting flying shears also have the function, in order to ensure products quality and easy adjustment, set side movable sleeve and vertical movable sleeve between middle rolling and finishing I rolling, finishing I rolling and finishing II rolling.
Products rolled by the mill are sent by the pinch roll to rotary double-rule flying shear to be cutted into double-rule, then enter into upper steel pusher cooling bed to be cooled through clip tail roller after reducing the speed. When the products on the cooling bed surface step by step, in the meanwhile, the evener on the bed surface evens the products’ front, gather the products into collection agencies by dynamic tooth. When the products have been collected a certain quantity, collection agencies will translate them to under the table to be cut into scale, passing by the products inspection gathered in the products collection device, then packing, weighing, signing and piling in the storage.

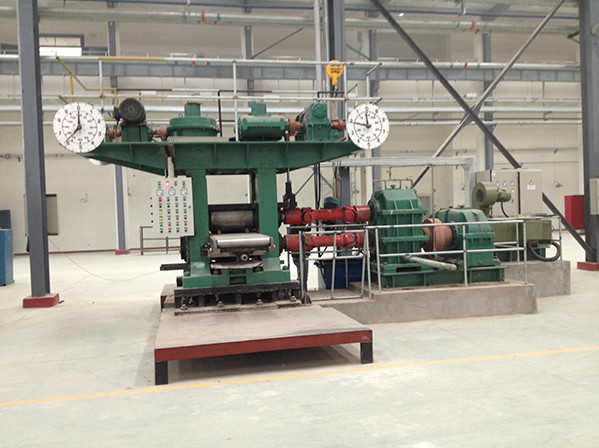

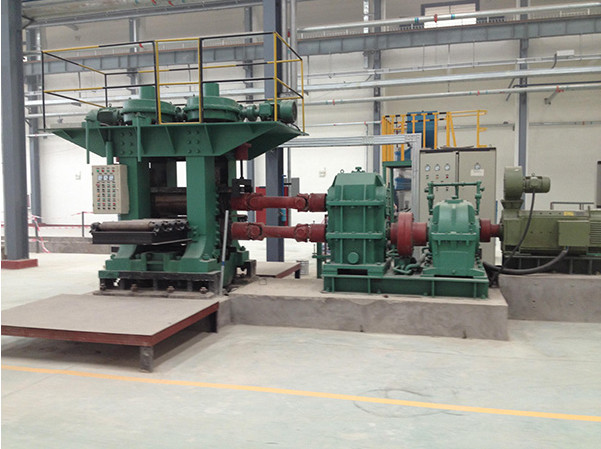

150,000tons/Year Steel Rod Hot-Rolling Mill Making Machine/ Production Line 0

2.Heating furnace
3.Electric
4.Production water supply, water draining and water treatment
5.Ventilation
6.Instrument
7.Construction
8.Environmental Protection, Security, Industrial Hygiene and Fire protection

9.Equipment List

No.Equipment NameQtyWeight(t)Remarks
1Charging roller2groups7
2Steel pusher1pc3Don’t include the hydraulic station
3Heating furnace1set
4Discharge machine1pc5
5Furnace delivery table1group8
6Tensile shear1pc1
7Φ450×3 continuous rough rolling mill1group80
8φ450×2 continuous rough rolling mill2groups60×2
9φ320×2 middle rolling mill3groups40×3
10φ280×2 continuous finishing rolling mill3groups20×3
111# head cutting flying shear1pc
122# head cutting flying shear1pc
13Movable sleeve device2pcs4
14Pinch roll2pcs2
15Double-rule flying shear1pc
16Upper steel pusher1set10
17Cooling bed1pc100
18Uniform equipment1set2
19Lower steel pusher1set5
20Lower roller10groups15
21Constant sheer1pc10
22Fixed size baffle2pcs2
23Finished product cross test bench1pc10
24Collection device1set3
25Electric equipment9pcs

Main motor

DC700KW:1pc

DC400KW:8pcs


26


Support equipment

Rectifier transformer3pcs
27 Power transformer1pc
28 Electric control equipment1set
29 Process guide1set
30On-site installation main and auxiliary materialsHydraulic station1set
31 Dilute oil lubricating station2sets
32 Water supply and drainage equipment2sets
33 Cross trolley2pcs
